500Wh/kg Drone Battery 17000mAh 3.7V 10C Semi Solid State Pouch Cell
500Wh/kg Drone Battery descriptions from the supplier:
⚠️ Warning:
1. Avoid Physical Damage: Impact, puncture, or compression may cause internal short circuits or failure.
2. Temperature Control: Operate/store within specified ranges (e.g., -40°C to 70°C). High temperatures accelerate degradation; extreme cold may trigger protective shutdowns.
3. Charge/Discharge Safely: Use only approved chargers. Overcharging or deep discharging permanently reduces cell lifespan.
4. No Tampering: Unauthorized disassembly risks damaging the solid-state electrolyte structure, leading to safety hazards.
5. Proper Disposal: Dispose of spent cells as electronic waste per regulations—do not discard or incinerate.
Note: If abnormalities occur (swelling, leakage, odor), power off immediately and isolate the cell.
Company Introduction

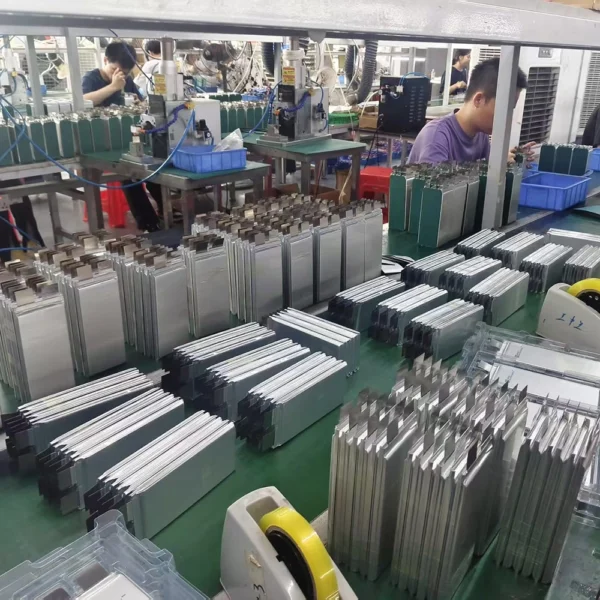

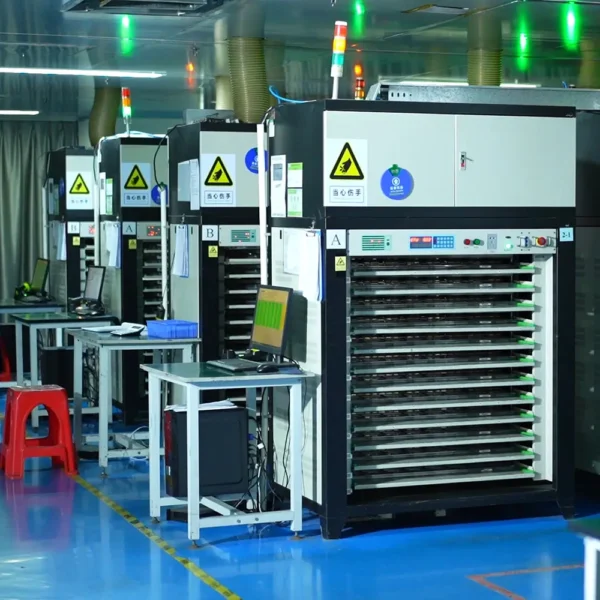

DEFNOCO has specialized in advanced lithium and semi-solid state drone batteries since 2011. We run a 24,000 square meter automated production workshop with over 800 staff and 100+ experienced R&D engineers. We focus on high energy density battery cells, implement strict quality control, and deliver reliable UAV power products with fast global delivery services for worldwide clients.
Product Features

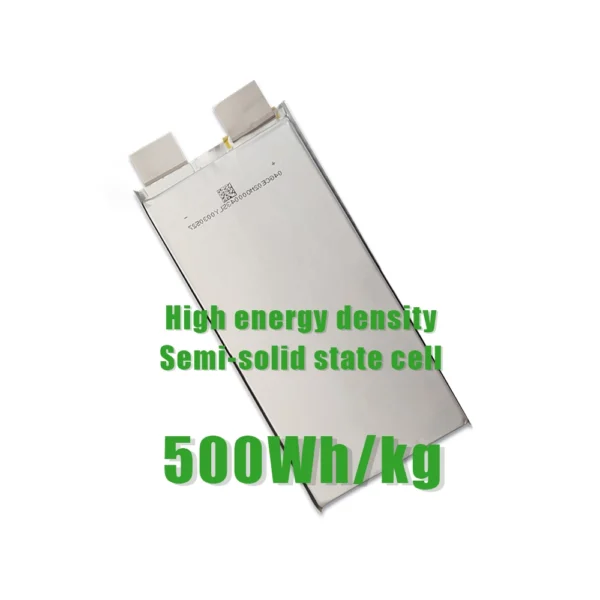

- Top-tier 500Wh/kg energy density to greatly extend the flight time of various drones
- 17000mAh large capacity semi solid state drone cell for long-duration missions
- 10C continuous discharge rate to adapt to the power demands of most industrial UAVs

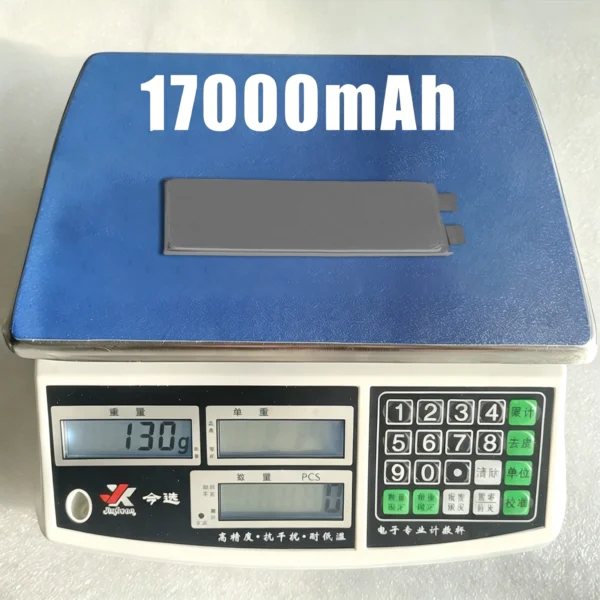

- Ultra-light 130g single cell weight to reserve drone payload space
- Ultra-thin 7.4*50*130mm compact size for easy installation and pack assembly
- Semi-solid electrolyte improves thermal stability and reduces safety risks
- Weldable flat tabs support customized battery pack production
- Low internal resistance and long cycle life for stable long-term use

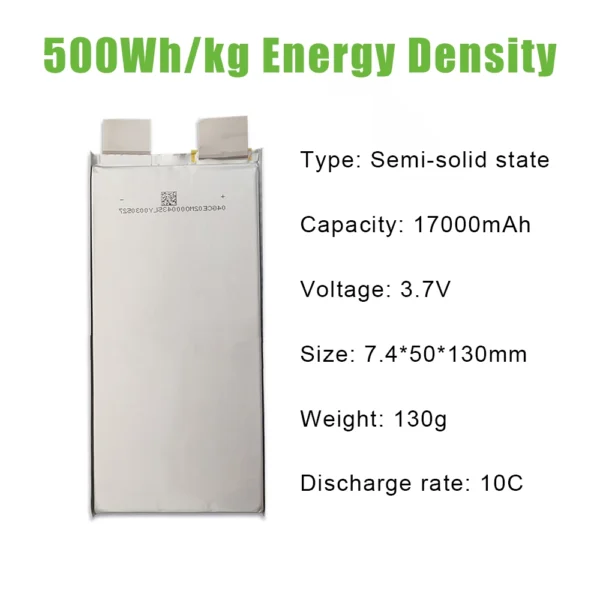

Product Specifications
| Parameter Item | Detailed Specification |
|---|---|
| Battery Type | Semi-solid state lithium pouch cell |
| Energy Density | 500Wh/kg |
| Rated Capacity | 17000mAh |
| Nominal Voltage | 3.7V |
| Continuous Discharge Rate | 10C |
| Overall Dimension | 7.4mm * 50mm * 130mm |
| Single Cell Net Weight | 130g |
500Wh/kg Drone Battery Description
This premium 500Wh/kg drone battery is a cutting-edge semi solid state lithium pouch cell tailored for long-endurance unmanned aerial vehicles. Equipped with 17000mAh capacity and a 3.7V nominal voltage, this semi solid state drone battery solves the common short flight issue of traditional drone batteries. Its remarkable 500Wh/kg energy density delivers more power under the same weight, while the 10C steady discharge rate ensures stable output during high-load flight.
Measuring 7.4*50*130mm and weighing only 130g, this lightweight high energy density drone battery will not occupy extra payload. It can be combined in series or parallel to make multi-cell packs for 4S, 6S and other mainstream UAV setups. As introduced on Wikipedia – Lithium-ion Battery, semi-solid state batteries are upgraded lithium products with higher energy density and better safety performance. Meanwhile, MDPI Academic Research on UAV Battery Reliability notes that high-density lithium cells are the core power choice for modern industrial drones. This 17000mAh 10C drone cell is your ideal choice for agricultural drones, survey UAVs and long-range FPV aircraft.
Brief Summary of Key Parameters
- Battery Type: Semi-solid state lithium pouch cell, safer and higher density than traditional liquid lithium batteries
- Capacity: 17000mAh large capacity, reducing frequent battery replacement during drone missions
- Voltage: Standard 3.7V single cell voltage, compatible with mainstream drone BMS systems
- Energy Density: 500Wh/kg ultra-high density, maximizing flight time per unit weight
- Discharge Rate: 10C continuous discharge, no obvious voltage drop under heavy loads
- Dimensions: 7.4*50*130mm ultra-thin size, fits most drone internal spaces
- Weight: 130g lightweight design, protecting drone payload capacity
- Compatibility: Weldable tabs, convenient for manufacturers to assemble custom battery packs
Applications
- Long-endurance surveying and mapping industrial UAVs for land measurement and 3D modeling
- Agricultural spraying drones for continuous field operation all day long
- Surveillance and patrol drones for public security and pipeline inspection work
- Heavy-lift multirotor drones equipped with cameras, LiDAR sensors and delivery equipment
- Long-range FPV racing and freestyle quadcopters for hobby and professional use
- Custom battery packs for vertical take-off and landing VTOL aircraft
- Small cargo delivery drones with strict weight and flight time limits
FAQ:
1. who are we?
We are based in Guangdong, China, start from 2023,sell to North America(60.00%),Northern Europe(20.00%),Western Europe(20.00%).
Totally about 51-100 employees in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
FPV drone battery, lipo battery, Solid state battery, bicycle&scooter battery, jump starter.
4. why should you buy from us not from other suppliers?
We have 3 factories; Own R&D team; 14 Yeas experience in the Industry; Better match your requirement.
5. what services can we provide?
1 Year quality guarantee;
24/7 online technical service;
free replacement for fatal parts
